Pole End Fittings & Collars

FORESPAR'S ULTRA SERIES™|0FFSHORE SERIES GRAND PRIX END GP & ULTRA SERIES™-GPS|AUTOMATIC SOCKET END - TS & UTS|ADAPTING COLLARS ::  x|x|x|x ::Represents the cutting edge in spinnaker pole end fitting technology. Designed for high strength, very light weight and resistance to wear and corrosion the Ultra Series™ composite end fitting is perfect for aluminum or carbon fiber spinnaker poles and whisker poles. The Ultra Series™ is the salior's choice for inshore and offshore racing and cruising. Available with or without triggers. Maximum LOA Boat Outboard End - 43'. Maximum LOA Boat Inboard End - 36'. All larger boats use GP Series. See also: Size Recommendation Guide by length or boat model, Spinnaker poles, Spinnaker pole kits, Line Control Whisker Poles, Lock Repair Kits, and Twist Lock Poles For Boats To 28’. *Trip line is Spectra™ with terminal eye strap included. Length is sufficient for standard pole lengths based on diameter.



Part. Number     Weight          Length

304054                6.97oz          2.75"

304050                6.97oz          2.75"

304051                9.25oz          3.125"

304052               11.92oz         3"

304053               15.72oz         3.625"

304060               6.97oz           2.75"

304061               9.25oz           3.215"

304062               11.92oz        3"

304063               15.72oz        3.625"





  UTR EF                                                          UXP EF



UXTR EF                                                          UTR EF (BLACK)





|The UGPS end fitting comes with a stainless steel lined throat. As Always, this deluxe oceanracing end fitting features a wide flared throat. Both the UGPS ends also feature our proven spring loaded piston systems with roller for positive lock and release.



Part Number     Weight          Length

304021               2lb 6oz          5"

304022               2lb 9oz          5-5/8"

304023               2lb 3oz          5-5/8"

304024               3lb 3oz          5-3/16"

309030               2lb 12oz        5"

309033               3lb 6oz          5-5/8"

309035               3lb 14oz        5-5/8"

309038               4lb 13oz        5-3/16"



ULTRA GRAND PRIX                                 GRAND PRIX





|

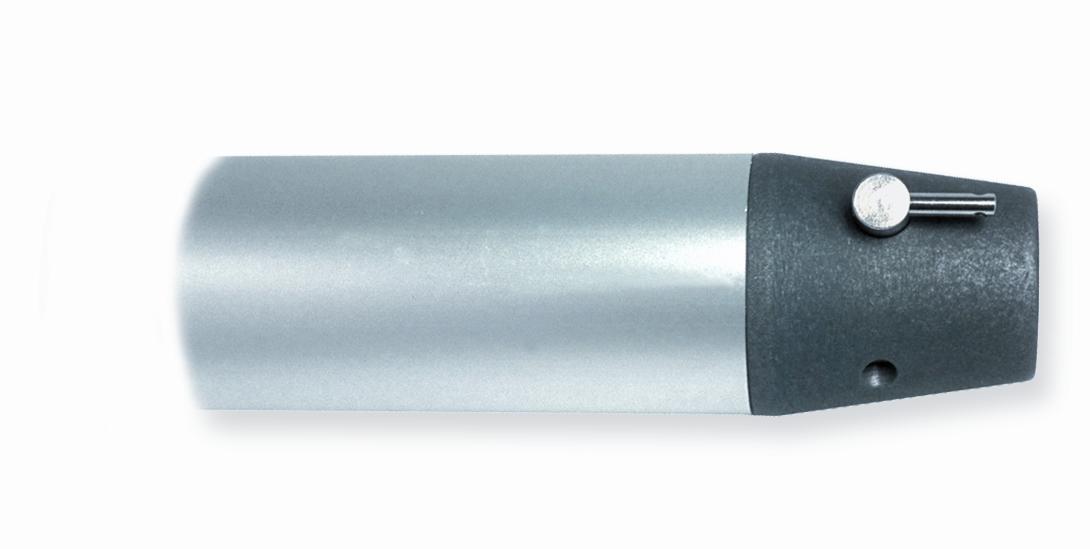

This unique "socket" type fitting automatically locks onto the mast toggle pin with a quick and easy push. The release is just as quick with a press of the lever (fits Forespar® mast toggle pins only).





Part Number     Weight

309028               1lb 10oz

304080               1lb 4oz

309031               1lb 13oz

304081               1lb 7oz

405006               2lb 2oz

309036               2lb 13oz

304082               1lb 7oz

304083               1lb 7oz



TS 300

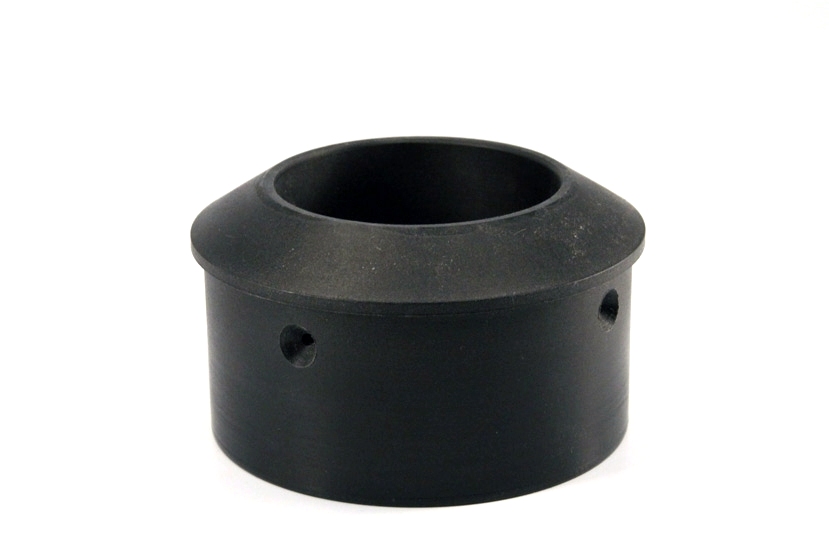

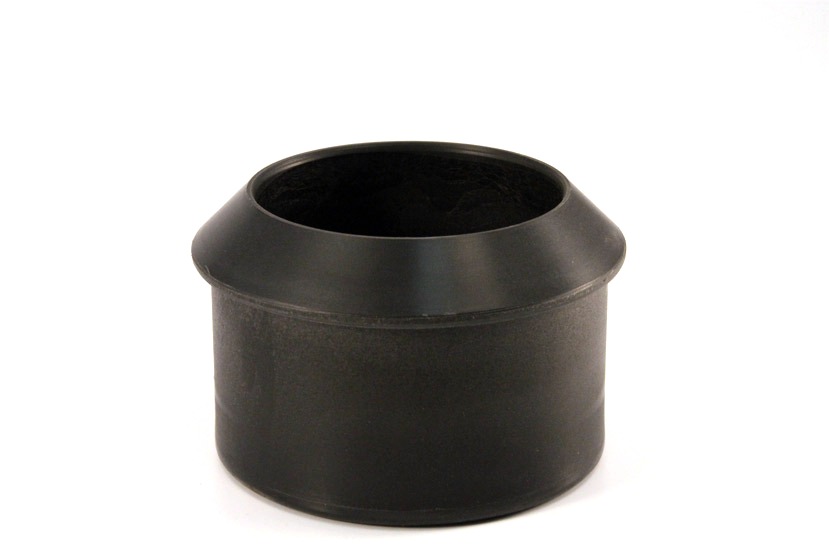

|For sleeving Forespar® spinnaker pole end-fittings. For use on larger diameter tubing, and other applications.



Part Number     Weight

304038               6.4 oz

304048               3.2 oz

304049               1.6 oz

304085               8 oz

304086               11.2 oz

309020               12 oz

309082               1lb 4.8 oz

309083               1lb 4.8 oz
