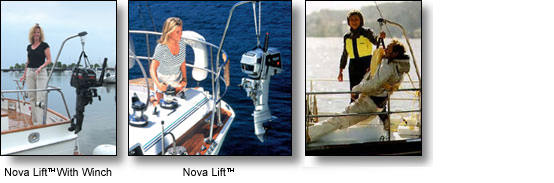

NOVA LIFT™

Forespar's® Nova products combine elegant styling with superb strength and function. The Patented Nova Lifts use internally let purchase to keep the lifting arm centered over the load. Other brands swing left and right without control. Another valuable feature is the internal lead to your cockpit winch where you have loads of lifting power to make the job easy! No external block & tackle.

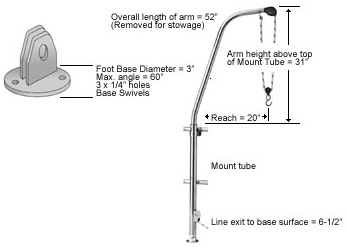

Nova Lift™ comes with a stainless steel lower mounting tube that will accommodate 30" (762.00mm) height rails. Vessels with rails higher than 30" (762.00mm) will require the use of a deck pad (not included) to raise the installation to the proper height.

The Nova Lift™ with winch is ideal for trawlers and motor yachts where sailboat winches are not available.

220 lbs. Maximum Load

Part No.	Description	Price
153311	Nova Lift™	$510.00
153312	Nova Lift™ with Winch	$635.00
153308	Outboard Motor Sling	$41.50
153387	1-1/4” (31.75mm) Rail Adaptor	$68.50
153303	Plastic Outboard Motor Mount -1” (25.40mm) Rail	$75.00
153318	2" (50.80mm) - 5" (127.00mm) Optional Stand Off Bracket	$108.00

Stand-Off bracket

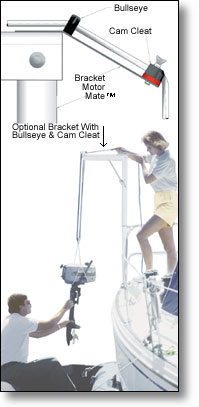

MOTOR MATE™

Features heavy duty anodized aluminum, powder coated white for added corrosion resistance. The unit stores in its own 31" (787.40mm) x 6" (152.39mm) bag. Comes with tackle and will lift anything from the dinghy to the cockpit (or vice-versa) up to 100 lbs. Great for the dinghy motor, but also good for SCUBA tanks, ice, duffel bags, groceries, etc.

The MOTOR MATE™ uses a Railfast® mounted ring on the rail and a "toe" on the cockpit coaming directly under the rail.

Light-Weight, Portable, Compact
Ideal for Lifting Outboard Motors, Sea Bags, SCUBA Gear
Lifting Capacity: 100 lbs. (the weight, approximately, of a 15 hp. Outboard)
Works Great for Both Power Boats & Sailboats

Boom length: 20” (508.00mm)
Assembled height: 54” (1371.60mm)
Weight: 12 lbs.

Part No.	Description	Price
153100	Motor Mate™	$489.00
153104	Base Mount*	$48.00
153105	Rail Mount*	$61.00
153130	Cam Cleat Bracket	$83.00
153109	Vinyl Bag*	$53.50

*Included with MOTOR MATE™

CARGO MATE™

This heavy duty white power coated aluminum heavy lifter mounts and dismounts with ease. CargoMate™ stows neatly in a quality bag, and complete tackle is included. Winch drum capacity provides for 13 vertical feet of lift. With greater lift capacity, the unit should be thru-deck mounted on sailboats and coaming or transom/swim step mounted on power boats. Deck flange and universal base mount provided as standard. 33" (838.19mm) column extensions available.

The Big Brother to Motor Mate™
Lifting capacity: 250 lbs.
Integral ratchet type winch provides 15 to 1 lift ratio
For both Power & Sail

Boom length: 34” (863.59mm)
Assembled height: 54”+ (1371.60mm)+
Weight: 32 lbs.

Part No.	Description	Price
153200	Cargo Mate™	$996.00
153207	33” (838.19mm) Extension Tube	$120.00
153209	Storage Bag*	$77.00
153230	Deck Mounting Flange*	$46.00
153233	Power Boat Mounting Ring	$59.70

*Included with CARGO MATE™
