RADAR SPARS
 Choice of fixed platform or fixed platform that articulates either mechanically or electrically
Choice of aluminum pole with aluminum platform or carbon pole with composite platform
Electric motor is Mil. Spec. marinized alignment mechanism
Choice of deck, transom or thru-deck mounting - provisions for optional antenna arm/s
Versatile installation kit
Two sizes of platforms for 16nm and 24nm radomes - Carbon has a 30% weight saving advantage 10 - 12 ft above the waterline - Poles come 12ft long to be cut to custom length as needed - Painted AwlGrip matterhorn white unless otherwise specified

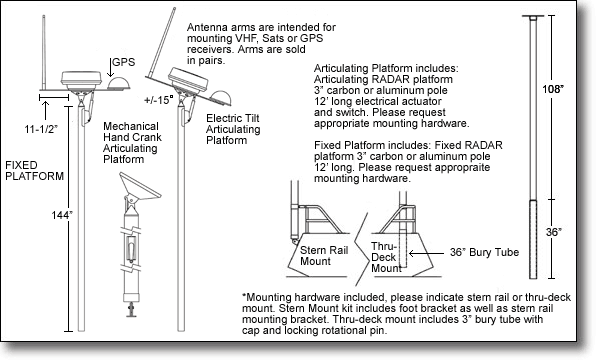

CARBON FIBER & ALUMINUM RADAR SPARS
(Standard pole lengths - 12 ft. and customers simply cut to length)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
