CRUISING CHUTE POLE

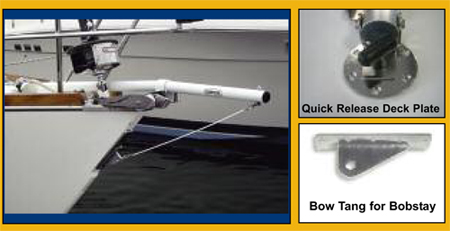

Removable Sprit Extends Downwind alt="sail-banana-bow-sprit" title="sail-banana-bow-sprit" sails Beyond Bow Pulpit.
The Banana Sprit comes in 2 sizes, one for boats up to 40ft and another for boats up to 50ft in length.
Simple anchor roller installation (on most boats)
Quick Fast-Pin set up and removal
Standard installation leaves deck clear when pole is removed
Will not interfere with anchoring
Fixed length non-telescoping for strength and easy set-up
Stainless Steel mounts& Silver anodized aluminum tube
Bobstay and stainless steel bow fitting included
We strongly recommend that this product be professionally installed. For a list of Forespar dealers in your area please go to Dealer Locator.
Both models of the Banana SpritTM are designed to fit into the existing bow roller/channel on a sailboat. If there is no existing channel, the proper channel can be purchased from Forespar.
The system utilizes a pin through the side plates of the channel and the Banana Sprit to hole it in place. In addition there is a stainless steel plate with a quick disconnect permanently affixed to the foredeck. To quickly remove the sprit from the boat, simply pull the plunge pin in the bow roller and then unscrew the fly nut on the deck to remove the unit from the deck.
Each Banana sprit has a stainless steel ubolt on the top where a block is attached and one on the bottom for the attachment of a bobstay. Each Banana sprit must be installed with a bobstay to offset the uploading on the sprit.
Each unit can be shortened as necessary to fit over an anchor well, or other obstruction as needed. Simply cut off the inboard end of the tube to the desired length. Use of a code zero or the absence of a bobstay voids the warranty. Each model is anodized aluminum with structrural reinforcement inside the tubing.
*each banana sprit is shipped standard with a curved bobstay attachment, if a flat base is needed, please request part ##305320. |
