SPINNAKER POLE END FITTINGS



FORESPAR'S ULTRA SERIES™

Represents the cutting edge in spinnaker pole end fitting technology. Designed for high strength, very light weight and resistance to wear and corrosion the Ultra Series™ composite end fitting is perfect for aluminum or carbon fiber spinnaker poles and whisker poles. The Ultra Series™ is the salior's choice for inshore and offshore racing and cruising. Available with or without triggers. Maximum LOA Boat Outboard End - 43'. Maximum LOA Boat Inboard End - 36'. All larger boats use GP Series.



*Trip line is Spectra™ with terminal eye strap included. Length is sufficient for standard pole lenghts based on diameter.



Part No. w/trip*

For Pole Model No.

Fits Diameter

Tube Inside Dimemsion

End Fitting Length

End Fitting Weight

Retail

304054

UXP-150-EF

1.500"

1.370"

2.750"

6.97 oz.

$90.70

304050

UXP-200-EF

2.000"

1.870"

2.750"

6.97 oz.

$99.50

304060

UTR-200-Ef

2.000"

1.870"

2.750"

6.97 oz.

$124.50

304051

UXP-250-EF

2.000"

2.334"

3.125"

9.25 oz.

$114.45

304061

UTR-250-EF

2.500"

2.334"

3.125"

9.25 oz.

$145.85

304052

UXP-300-EF

3.000"

2.835"

3.000"

11.92 oz.

$129.40

304062

UTR-300-EF

3.000"

2.835"

3.000"

11.92 oz.

$163.70

304053

UXP-350-EF

3.000"

3.260"

3.625"

15.72 oz.

$154.80

304063

UTR-350-EF

3.500"

3.260"

3.625"

15.72 oz.

$200.25

*All ultra ends require minimum 1.500" inside diameter rings to function properly. Undersized rings will damage ends and void warranty.

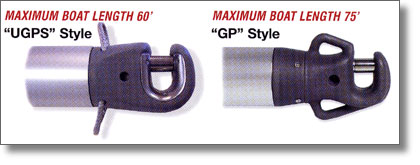

0FFSHORE SERIES GRAND PRIX END GP & ULTRA SERIES™-GPS

The UGPS end fitting comes with a stainless steel lined throat. As Always, this deluxe oceanracing end fitting features a wide flared throat. Both the UGPS ends also feature our proven spring loaded piston systems with roller for positive lock and release.











Part No. w/trip*

For Pole Model No.

Fits Tube Diameter

Tube Inside Dimemsion

Weight w/o trip

End Fitting Length

Retail

309030

GP-300-EF Aluminum

3.000"

2.835"

2 lb. 12 oz.

5.000"

$529.50

309033

GP-350-EF Aluminum

3.500"

3.260"

3 lb. 6 oz.

7.000"

$623.90

309035

GP-400-EF Aluminum

4.000"

3.750"

3 lb. 14 oz.

7.250"

$652.40

309038

GP-450-EF Aluminum

4.500"

4.260"

4 lb. 13 oz.

8.500"

$708.40

304021

UGPS-300-EF-ULTRA

3.000"

2.835"

2 lb. 6 oz.

5.000"

$395.00

304022

UGPS-350-EF-ULTRA

3.500"

3.260"

2 lb. 9 oz.

7.000"

$463.40

304023

UGPS-400-EF-ULTRA

4.000"

3.750"

2 lb. 3 oz.

7.250"

$484.00

304024

UGPS-450-EF-ULTRA

4.500"

4.260"

3 lb. 3 oz.

8.500"

$526.60



AUTOMATIC SOCKET END - TS & UTS

This unique "socket" type fitting automatically locks onto the mast toggle pin with a quick and easy push. The release is just as quick with a press of the lever (fits Forespar® mast toggle pins only).













For Pole Part No.

Fits Model No.

Weight Diameter

Tube Inside Dimemsion

Weight without Trip

Retail

309028

TS-300-EF

3.000"

2.835"

1 lb. 10 oz.

$323.50

304080

UTS-300-ULTRA

3.000"

2.835"

1 lb. 4 oz.

$317.15

309031

TS-350-EF

3.500"

3.260"

1 lb. 13 oz.

$346.55

304081

UTS-350-ULTRA

3.500"

3.260"

1 lb. 7 oz.

$338.20

405006

TS-400-EF

4.000"

3.750"

2 lb. 2 oz.

$369.35

309036

TS-450-EF

4.500"

4.260"

2 lb. 13 oz.

$432.05

304082

UTS-400-ULTRA

4.000"

3.7500"

1 lb. 7 oz.

$352.00

304083

UTS-450-ULTRA

4.500"

4.260"

1 lb. 7oz.

$379.40



ULTRA SERIES™ GRAND PRIX OUTBOARD POLE END

Forespar's ULTRA SERIES™ composite pole end fittings have been a proven, overwhelming success. Their light weight and resistance to corrosion answer racing and cruising sailor's needs for strenght and reliability. The Grand Prix ULTRA SERIES include sizes suitable for yachts sixty feet LOA.



The ULTRA Grand Prix, UGPS, model with a stainless throat liner insert weighs only 38 ounces.
