CARBON FIBER SPINNAKER POLES & WHISKER POLES
Forespar®
Composites Division has years of experience in the production
of high performance poles for racing and cruising boats. Weight reductions
over similar aluminum poles are typically 50% or better. Poles from 2.5”
to 4.5” diameters are straight tubes unless custom 4.5” to
3.4” taper is requested. All 5” diameter and larger tubes
have double tapered ends. Forespar® poles are produced
from pressure cured intermediate modulus carbon fiber, and high performance
epoxy resin systems.
Part No. |
O.D. |
Approx. Total Weight |
End Fittings |
Bridles |
Maximum Length |
Standard Finish |
Retail |
| |
Straight Non-Tapered Tubes |
800901 |
2” |
4 lbs. |
UXP-UXP |
Double |
10.0' |
AwlGrip Clear |
$842.00 |
800101 |
2 1/2" |
4.5 lbs. |
UXP-UXP |
Double |
12.0' |
AwlGrip Clear |
$984.00 |
800102 |
2 1/2” |
4.5 lbs. |
UTR-UTR |
Double |
12.0' |
AwlGrip Clear |
$1,087.00 |
800201 |
3" |
8 lbs. |
UXP-UXP |
Double |
14.0' |
AwlGrip Clear |
$1,495.00 |
800202 |
3” |
8 lbs. |
UTR-UTR |
Double |
14.0' |
AwlGrip Clear |
$1,547.00 |
800203 |
3” |
9.5 lbs. |
UTS-UTR |
Double |
14.0' |
AwlGrip Clear |
$1,554.00 |
800301 |
3 1/2" |
11.5 lbs. |
UTR-UTR |
Double |
16.5' |
AwlGrip Clear |
$1,717.00 |
800302 |
3 1/2" |
11.5 lbs. |
UXP-UXP |
Custom |
16.5' |
AwlGrip Clear |
$1,586.00 |
800303 |
3 1/2" |
12 lbs. |
UTS-UTR |
Custom |
16.5' |
AwlGrip Clear |
$1,670.00 |
800304 |
3 1/2" |
14 lbs. |
UTS-UGPS |
Custom |
16.5' |
AwlGrip Clear |
$1,749.00 |
800305 |
3 1/2" |
14 lbs. |
UTS-GP |
Custom |
16.6' |
AwlGrip Clear |
$1,708.00 |
800402 |
4” |
20 lbs. |
UTS-UTR |
Custom |
18.5' |
AwlGrip Clear |
$2,389.00 |
800404 |
4” |
21 lbs. |
UTS-GP |
Custom |
18.5' |
AwlGrip Clear |
$2,391.00 |
800405 |
4” |
25 lbs. |
UTS-UGPS |
Custom |
18.5' |
AwlGrip Clear |
$2,416.00 |
800501 |
4 1/2" |
26 lbs. |
UTS-GP |
Custom |
22.5' |
AwlGrip Clear |
$2,647.00 |
800503 |
4 1/2" |
11.5 lbs. |
UTS-UGPS |
Custom |
22.5' |
AwlGrip Clear |
$2,735.00 |
| |
| |
Double Tapered Tubes |
800502 |
4.5" to 3.5" 30.00 |
|
UTS-UTR |
Custom |
22.5' |
AwlGrip White |
$4,192.00 |
800504 |
4.5" to 3.5" 30.10 |
|
UTS-GP |
Custom |
22.5' |
AwlGrip White |
$4,594.50 |
800505 |
4.5" to 3.5" 30.10 |
|
UTS-UGPS |
Custom |
22.5' |
AwlGrip White |
$4,547.00 |
800601 |
5.0" to 3.5" 39.00 |
|
TS-GP |
Custom |
24.5' |
AwlGrip White |
$5,758.00 |
800701 |
6.0" to 4.0" 62.00 |
|
TS-GP |
Custom |
28.5' |
AwlGrip White |
$6,494.00 |
|
| |
Line Control Whisker Poles |
800802 |
|
19 lbs. |
LC-UTS-UTR |
|
12'-22' |
Clear/White* |
$2,851.00 |
800800 |
|
24 lbs. |
LC-UTS-UTR |
|
13'-24' |
Clear/White* |
$3,302.00 |
800801 |
|
32 lbs. |
LC-UTS-UTR |
|
15'-27' |
Clear/White* |
$3,749.00 |
| |
SPECTRA TRIP LINES
STANDARD ON ALL POLES * White outer tube with
clear coated inner tube standard |
| |
Options |
800090 |
Optional Retracting Bridle on 3" or larger
TS/UTS inboard |
$141.00 |
800091 |
Optional 24" Kevlar TM Chafe Protection |
$157.00 |
Finish Options |
822296 |
U.V. High Gloss Clearcoat Finish 2"-3.5" |
$286.00 |
800094 |
Optional DEEP EPOXY CLEAR COAT Finish on tapered
poles 4.5" thru 6" |
$489.00 |
800093 |
Optional AWL2GRIP TM Finish |
$548.00 |
800096 |
AwlGrip Color Coat on 4" and Larger Poles |
$301.00 |
|
Padded Spinnaker Pole Covers
Shown with optional padded spinnaker pole cover
Part No. |
Model No. |
Retail |
882000 |
Small – Up to 3’ O.D., 14’6” |
$105.25 |
882001 |
Large – Up to 4” O.D., 18’5” |
$116.85 |
|

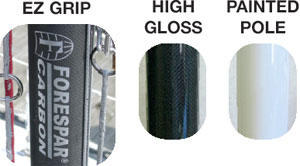

 CARBON
FIBER POLE FINISHES
Forespar offers 3 distinctive pole finishes to chose from:
Our standard "EZ Grip" rough textured finish
is the "price conscious" choice. The "High Gloss"
UV resistant clear coated glossy poles affers some protection from the
elements and also affords a very shiny and good looking pole. Te best
protection and in some ways the best looking pole is an Awlgrip™
painted pole. A painted pole offers the best protection from
the sun while matching any Awlgrip™ color in order to match the
mast, deck or any other paint scheme on the boat.
