Table Pedestal Systems

The Forespar® table Pedestal System feature the choice of gas charged, non-gas high/low and fixed length table pedestals and incorporates bases molded from our exclusive light weight and corrosion resistant Marelon®. This polymer composite material assures that the table bases will not corrode, blister or crack in the marine environment.

Forespar’s table systems feature top quality gas lifting springs and a positive locking device. Columns are marine grade anodized aluminum. Surface bases are available in powder coated “hammer-tone” silver or molded “teak-look” finish. Flush bases are “hammer-tone” silver only.

SPECS

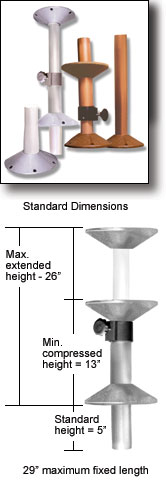

The bases are 9-3/4” (247.64mm) diameter. The standard gas and non-gas high/low systems are 13” (330.20mm) collapsed measured from the flange of each base with a 5” (127.00mm) bury below the sole. The lower base is epoxied to the tube. Maximum height is 26” (660.40mm). The base can be moved up or down upon request, however, the overall length of the tubes stays constant. For example if you request a 2” (50.80mm) bury, you will have a 16” (406.40mm) collapsed height (see diagram). The upper mounting flange is a tapered “slip fit” to the tube. This may also be epoxied for added stability and strength. All tube is sold by the inch and includes any/all tapers required.

Part No.	Model	Retail
161001	Gas spring set-silver coated surface bases	$355.00
161004	Gas spring set-“teak-look” surface bases	$348.00
161003	Non-gas high/low set-silver coated surface bases	$302.00
161006	Non-gas high/low set- “teak-look” surface bases	$295.00
164021	3” (76mm) silver coated surface base only	$85.00
164009	3” (76mm) “teak-look” surface base only	$78.50
164011	2-3/8” (60mm) silver coated surface base only	$85.00
164008	2-3/8” (60mm) “teak-look” surface base only	$78.50
164034	3” (76mm) plug/cap/cover	$5.40
164035	2-3/8” (60mm) plug/cap/cover	$5.40
170001	2-3/8” (60mm) fluted aluminum tube*	$2.25
170002	3” (76mm) fluted aluminum tube*	$3.40
170003	2-3/8" (60mm) brown anodized fluted aluminum tube per inch	$3.15
170004	3" (76mm) brown anodized fluted aluminum tube per inch	$4.20
