 Flush
Head Drain
|
Part No. |
Model No. |
Thread Size & Hose I.D. |
Thread Length |
Retail |
906038 |
CF 254 1-1/4 |
1-1/4" (31.75mm) |
1-3/4" (44.45mm) |
$16.75 |
906036 |
CF 254 1-1/2 |
1-1/2" (38.10mm) |
1-3/4" (44.45mm) |
$21.60 |
906037 |
CF 254S 1-1/2 |
1-1/2" (38.10mm) |
1-3/4" (44.45mm) |
$22.05 |
906034 |
CF 254 2 |
2" (50.80mm) |
1-3/8" (34.92mm) |
$26.85 |
906035 |
CF 254S 2 |
2" (50.80mm) |
1-3/8" (34.92mm) |
$30.85
|
906039 |
CF 254 1-5/8 |
1-5/8" (41.27mm) |
1-3/8" (34.92mm) |
$25.50
|
|
‘S’ Denotes Screened

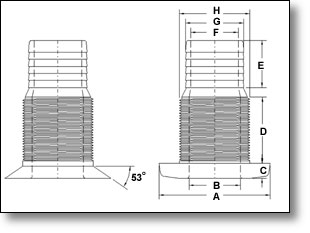

Series |
Size |
A |
B |
C |
D |
E |
F |
G |
H |
|
250 |
1/2" (12.70mm) |
2.375 (60.32mm) |
.430 (10.92mm) |
.335 (8.50mm) |
2.00 (50.80mm) |
N/A |
N/A |
N/A |
.810 (20.57mm) |
|
|
3/4" (19.05mm) |
2.430 (61.72mm) |
.665(16.89mm) |
.320 (8.10mm) |
2.250 (57.15mm) |
N/A |
N/A |
N/A |
1.015 (25.78mm) |
|
|
1" (25.40mm) |
2.835 (72.00mm) |
.875 (22.22mm) |
.320 (8.10mm) |
2.375 (60.32mm) |
N/A |
N/A |
N/A |
1.285 (32.63mm) |
|
|
1-1/4" (31.75mm) |
2.820 (71.63mm) |
1.115 (8.25mm) |
.325 (8.25mm) |
3.000 (76.2mm) |
N/A |
N/A |
N/A |
1.635 (41.52mm) |
|
|
1-1/2" (38.1mm) |
2.810 (71.37mm) |
1.380 (35.05mm) |
.320 (8.10mm) |
3.000 (76.2mm) |
N/A |
N/A |
N/A |
1.850 (46.99mm) |
|
|
251 |
1/2" (12.7mm) |
1.500 (38.10mm) |
.448 (11.37mm) |
.256 (6.50mm) |
2.125 (53.97mm) |
N/A |
N/A |
N/A |
.810 (20.57mm) |
|
|
3/4" (19.05mm) |
2.084 (52.93mm) |
.690 (17.52mm) |
.335 (8.50mm) |
3.093 (78.56mm) |
N/A |
N/A |
N/A |
1.028 (26.11mm) |
|
|
1" (25.4mm) |
2.345(59.56mm) |
.880 (22.35mm) |
.288 (7.31mm) |
2.400 (60.96mm) |
N/A |
N/A |
N/A |
1.282 (32.56mm) |
|
|
1-1/4" (31.75mm) |
2.650 (67.31mm) |
1.110 (28.19mm) |
.345 (8.76mm) |
2.950 (74.93mm) |
N/A |
N/A |
N/A |
1.615 (41.02mm) |
|
|
1-1/2" (38.1mm) |
2.940 (74.67mm) |
1.360 (34.54mm) |
.345 (8.76mm) |
2.950 (74.93mm) |
N/A |
N/A |
N/A |
1.850 (46.99mm) |
|
|
253 |
1/2" (12.70mm) |
1.506 (38.25mm) |
.505 (12.82mm) |
.265 (6.73mm) |
1.490 (37.84mm) |
.975 (24.76mm) |
.439 (11.15mm) |
.657 (16.68mm) |
.812 (20.62mm) |
|
|
3/4" (19.05mm) |
2.100 (53.34mm) |
.670 (17.01mm) |
.325 (8.25mm) |
1.677 (42.59mm) |
1.028 (26.11mm) |
.535 (13.58mm) |
.770 (19.55mm) |
1.015 (25.78mm) |
|
|
1" (25.40mm) |
2.350 (59.69mm) |
.958 (24.33mm) |
.295 (7.49mm) |
1.695 (43.05mm) |
1.085 (27.55mm) |
.797 (20.24mm) |
1.015 (25.78mm) |
1.280 (32.51mm) |
|
|
1-1/4" (31.75mm) |
2.675 (67.94mm) |
1.194 (30.32mm) |
.327 (8.30mm) |
1.818 (46.17mm) |
1.280 (32.51mm) |
1.021 (25.93mm) |
1.273 (32.33mm) |
1.615 (41.02mm) |
|
|
1-1/2" (38.10mm) |
2.933 (74.49mm) |
1.350 (34.29mm) |
.345 (8.76mm) |
1.875 (47.62mm) |
1.280 (32.51mm) |
1.258 (31.95mm) |
1.530 (38.86mm) |
1.850 (46.99mm) |
|
|
2" (50.80mm) |
3.511 (89.17mm) |
1.842 (46.78mm) |
.375 (9.50mm) |
1.875 (47.62mm) |
1.350 (34.29mm) |
1.610 (40.89mm) |
2.018 (51.25mm) |
2.320 (58.92mm) |
|
|
254 |
1/1/4" (31.75mm) |
2.805 (71.24mm) |
1.164 (29.56mm) |
.316 (8.02mm) |
1.500 (38.10mm) |
1.280 (32.51mm) |
.945 (24.00mm) |
1.260 (32.00mm) |
1.615 (41.02mm) |
|
|
1-1/2" (38.10mm) |
2.805 (71.24mm) |
1.406 (35.71mm) |
.316 (8.02mm) |
1.500 (38.10mm) |
1.280 (32.51mm) |
1.115 (28.32mm) |
1.475 (37.46mm) |
1.850 (46.99mm) |
|
|
2" (50.80mm) |
3.525 (89.53mm) |
1.672 (42.46mm) |
.325 (8.25mm) |
1.500 (38.10mm) |
1.300 (33.02mm) |
1.480 (37.59mm) |
2.018 (51.25mm) |
2.320 (58.92mm) |
|
